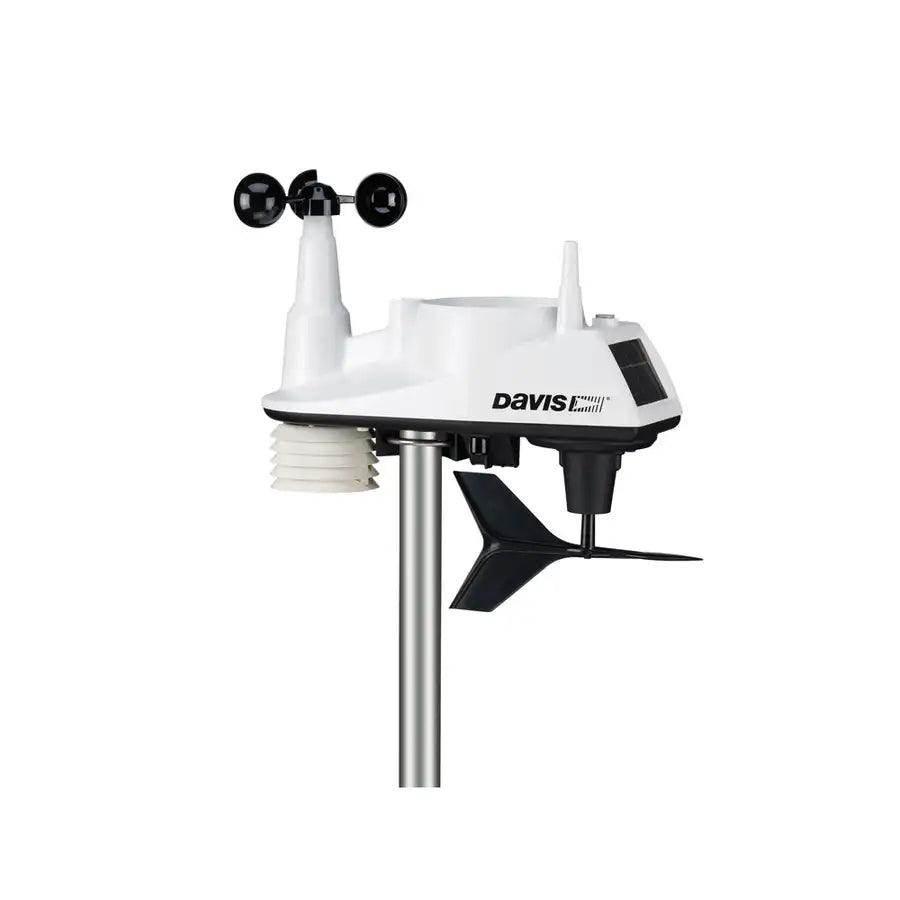

Vantage Vue® Wireless Integrated Sensor Suite
The innovative ISS combines a rain collector, temperature/humidity sensors, and anemometer/direction vane into a single unit for optimum performance and durability.
Mounting hardware included; mounting pole sold separately.
The fully-integrated, corrosion-proof sensor suite is built to take all the weather your location can give. The ISS combines a rain collector, temperature/humidity sensors, and anemometer/direction vane into a single unit for optimum performance and durability. The smaller profile sensor suite is designed to minimize visual impact in your yard or on your roof.
Wireless
Frequency-hopping spread spectrum radio ensures consistent transmission up to 1,000' (300M) from integrated sensor suite to console.
Rain Collector
Self-emptying tipping spoon measures rain with .01" (0,2 mm) resolution.
Anemometer
Vantage Vue records wind speeds as low as 2 mph (3 km/h) and as high as 180 mph (290 km/h).
Weather Proof Cover
Corrosion-resistant cover provides durability in extreme conditions. Electronics are potted or over-molded for added moisture shielding.
Radiation Shield
Provides excellent protection from solar radiation and other sources of radiated and reflected heat.
Temperature/Relative Humidity
Provides outside temperature readings from -40°F to 150°F (-40°C to 65°C). Also measures relative humidity from 0 to 100%.
Easy Installation
Installs easily and quickly with included mounting hardware kit.
Wind Direction
Measures wind direction in compass points or degrees.
Solar Panel
Energizes the station during the day. On-board super capacitor provides power at night. Lithium battery provides backup when needed.
Bubble Level
Allows for more accurate installation and better data collection.
