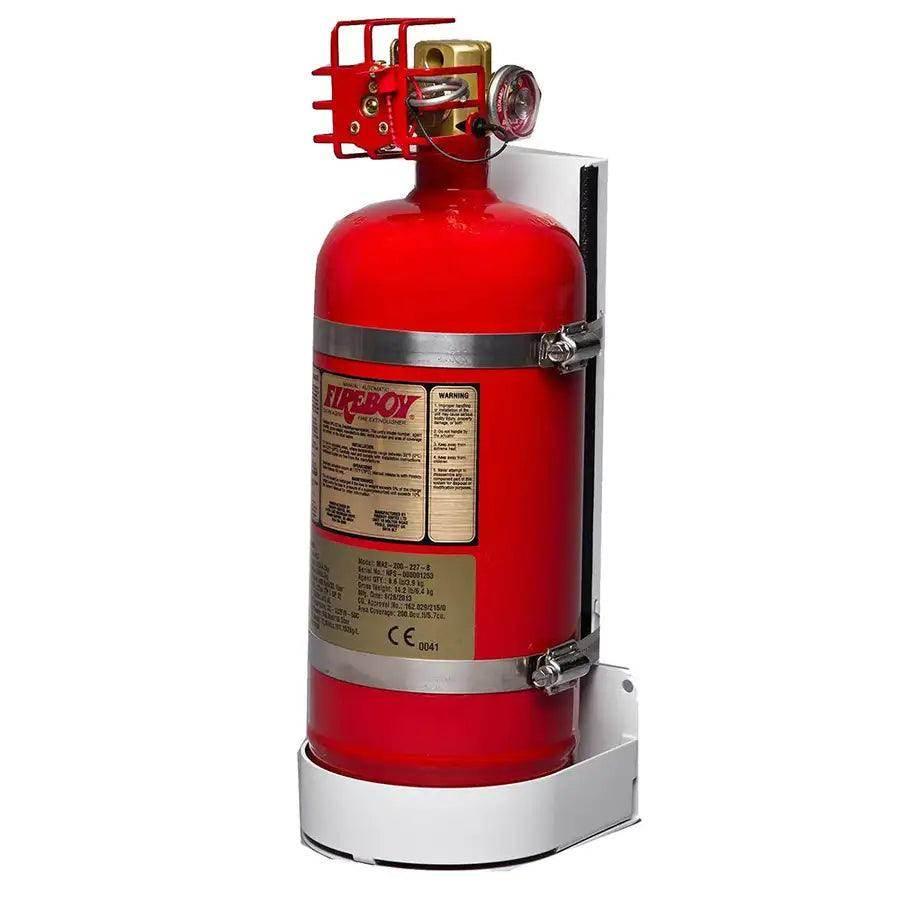

Fireboy-Xintex MA Series Fire Extinguishing System - 450 Cubic Feet [MA20450227-BL]

$2,249.99
$2,249.99 $2,250.00
Shipping policy html

Description

MA Series Fire Extinguishing System - 450 Cubic Feet

Fireboy-Xintex clean agent fire extinguisher systems are designed to automatically discharge whenever the protected space's ambient temperature reaches 175 degrees Fahrenheit.

When the Fireboy System discharges, the extinguisher is designed to fully empty the HFC-227ea (Heptafluoropropane) and 3M Novec Clean Agent in less than 10 seconds.  No clean-up is required.  There is no powdery residue or water left behind.  The fire is extinguished by a combination of heat reduction and chemical reactions.

*Diesel-powered craft require installation of an Engine Shutdown System

Features:

  • Protects engine rooms and machinery spaces
  • Pre-engineered, total flooding system
  • The safest way to combat an engine room fire
  • Automatic discharge at 175°F (79°C) with optional manual release
  • Utilizes HFC-227ea and 3M Novec clean agents – an effective Halon replacement
  • No water or powdery residue
  • Includes locking lever for increased safety when removing or installing cable

Certifications:

  • U.S.C.G.
  • EN ISO 9094-1 and 9094-2 standards
  • ISO RINA
  • MCA Certified
  • Factory Mutual

Technical Specifications:

  • Volume Protected - 450 ft3
  • Dimensions (Dia. x H) - 7.1" x 19.4" (18 x 49.3 cm)
  • Agent - HFC-227ea and 3M Novec
  • Agent Weight - 19.4 lbs (8.8 kg)
  • System Pressure (@70°F) - 240 psi

In the Box:

  • Fire extinguisher
  • Mounting bracket
  • Helm station panel - 90107
  • Owners manual

*Sold as an Individual


Owner's Manual (pdf)
Brochure (pdf)
