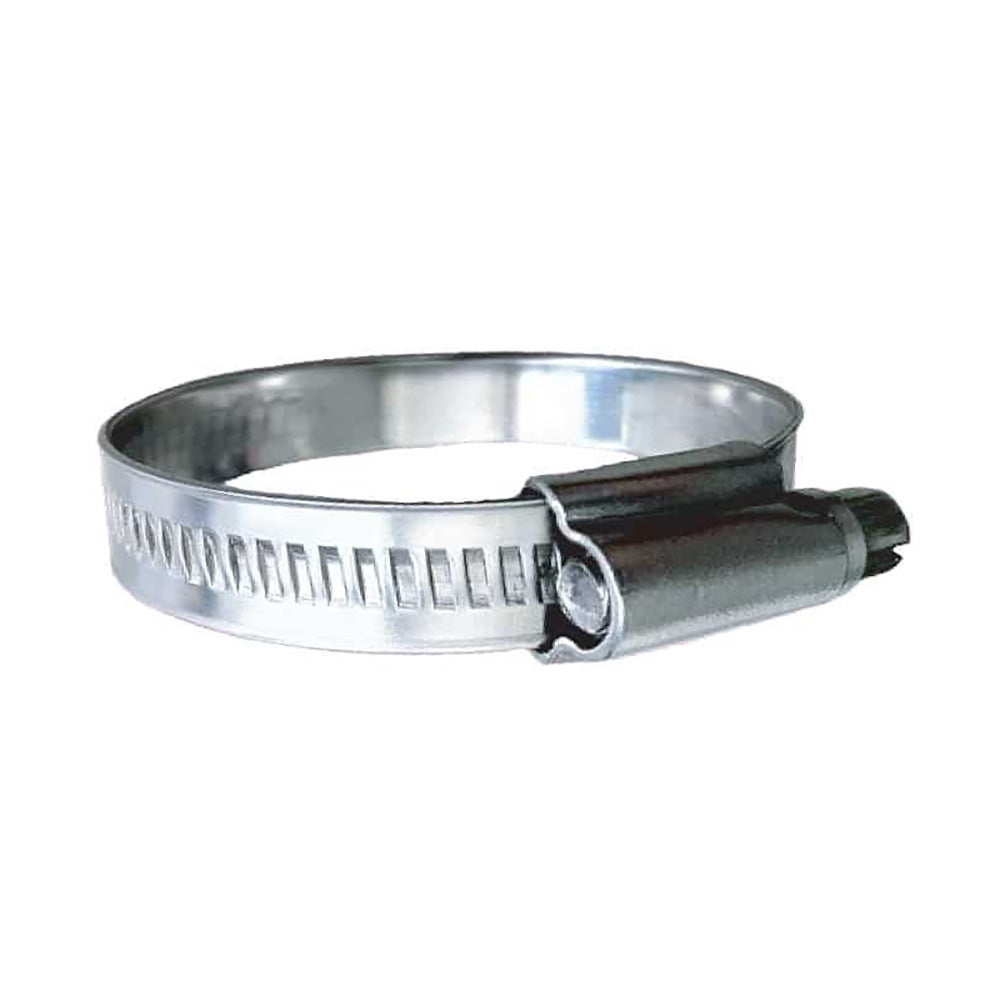

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10 [710-0581]

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10 [710-0581]

Regular price $36.50 USD
Regular price $0.00 USD Sale price $36.50 USD
Sale Sold out
Shipping calculated at checkout.

🚚 FREE shipping on orders $100+ within the USA · Canada shipping available

Quick facts

  • Brand: Trident Marine
  • Part number: 710-0581
  • Category: Accessories
  • Availability: In stock
  • Delivery: Ships to the USA and Canada; free US shipping on orders $100+

Common questions

Who makes the Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10?

It is made by Trident Marine. The manufacturer part number is 710-0581.

Does Besafe1st ship this item to Canada?

Yes. Besafe1st ships this item to the USA and Canada, with free US shipping on orders of $100 or more.

Is the Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10 in stock?

Yes, it is in stock and ready to order on besafe1st.com.

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections

Recommendations:

  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications
  • Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

  • Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

  • SAE Size: 10
  • Hose Inner Diameter: (inch) 1/2" – 5/8"
  • Clamping Range: (inch) 3/4" – 1-1/8" / (mm) 19-28
  • Recommended Torque Inch lbs: 35-45
