Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561]
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561]
🚚 FREE shipping on orders $100+ within the USA · Canada shipping available
Couldn't load pickup availability
Quick facts
- Brand: Trident Marine
- Part number: 705-0561
- Category: Accessories
- Availability: In stock
- Delivery: Ships to the USA and Canada; free US shipping on orders $100+
Common questions
Who makes the Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4?
It is made by Trident Marine. The manufacturer part number is 705-0561.
Does Besafe1st ship this item to Canada?
Yes. Besafe1st ships this item to the USA and Canada, with free US shipping on orders of $100 or more.
Is the Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 in stock?
Yes, it is in stock and ready to order on besafe1st.com.

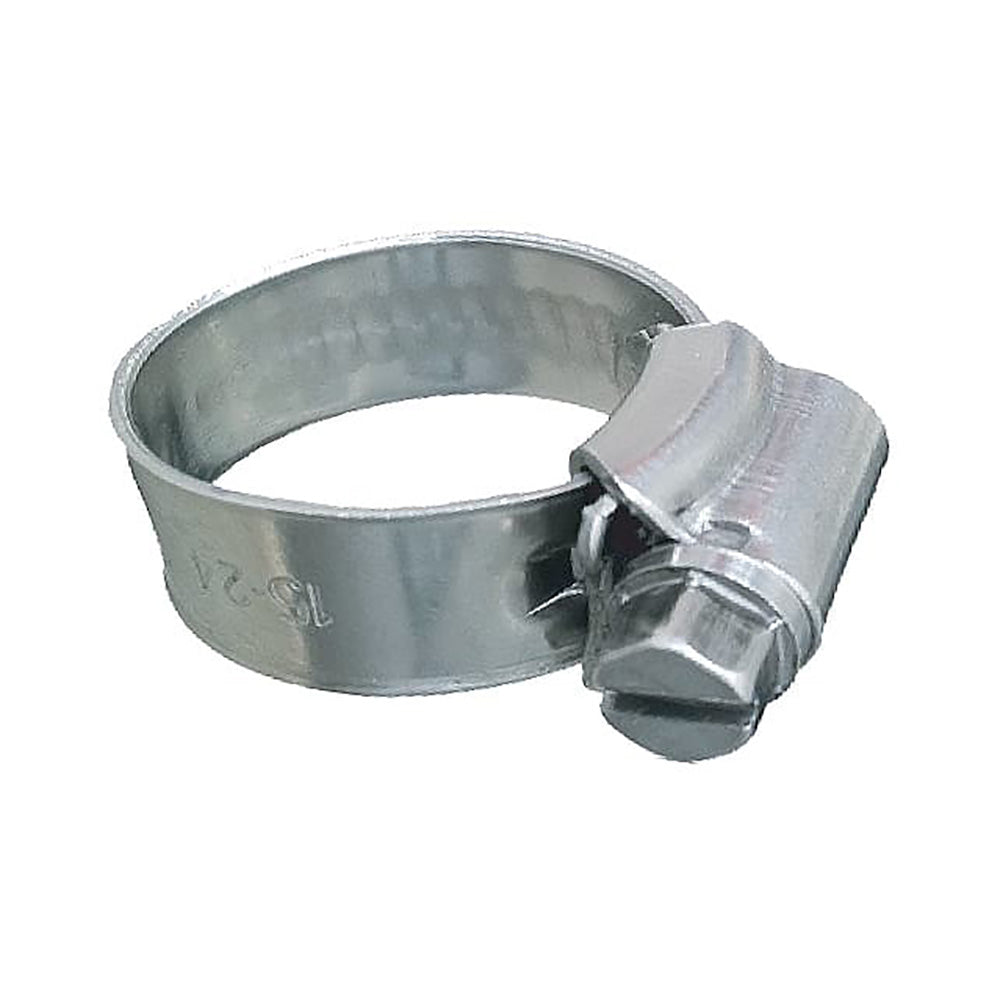

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"–21/32" Clamping Range - 10-Pack - SAE Size 4
Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.
Features:
- The screw head is 7mm
- Long service life and safety for most general-purpose hose applications and connections
Recommendations:
- Measure hose O.D. before selecting clamp size for proper fit
- Double clamp on each hose end for critical applications
Construction:
- Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
- Screw Drive: 316 Stainless Steel 7.0 mm screw head
Specifications:
- SAE Size: 4
- Hose Inner Diameter: (inch) 1/4" – 5/16"
- Clamping Range: (inch) 7/16" – 21/32" / (mm) 11-17
- Recommended Torque Inch lbs: 25-35
Quick Guide (pdf)
